Generator Protection System Selection Guide

Document Type: Technical Articles Document Published: 2026-08-29 Last Updated: 2026-08-29

1. General Overview

GoWatron provides generator protection solutions for low-voltage generators, small and medium-sized generating units, unit-connected generator-transformer applications, and complete generator protection and control systems.

The appropriate solution should be selected according to:

Rated generator voltage and output
Generator and step-up transformer connection arrangement
Required protection functions
Requirement for rotor earth-fault protection
Integrated or separate-relay configuration
Local switchgear installation or centralized panel mounting
Protection independence and redundancy requirements
SCADA and power plant automation interfaces

GoWatron’s generator protection portfolio includes:

GWPR200‑GB/LV for 400 V low-voltage generators
GWPR300‑GI for integrated generator differential and backup protection
GWPR300‑GT for generator-transformer unit protection
GWPR300‑GRE for generator rotor earth-fault protection
GWPC300‑GP for complete generator protection with separate protection and control devices
Customized dual-redundant systems for large or critical generating units

2. Quick Selection Table

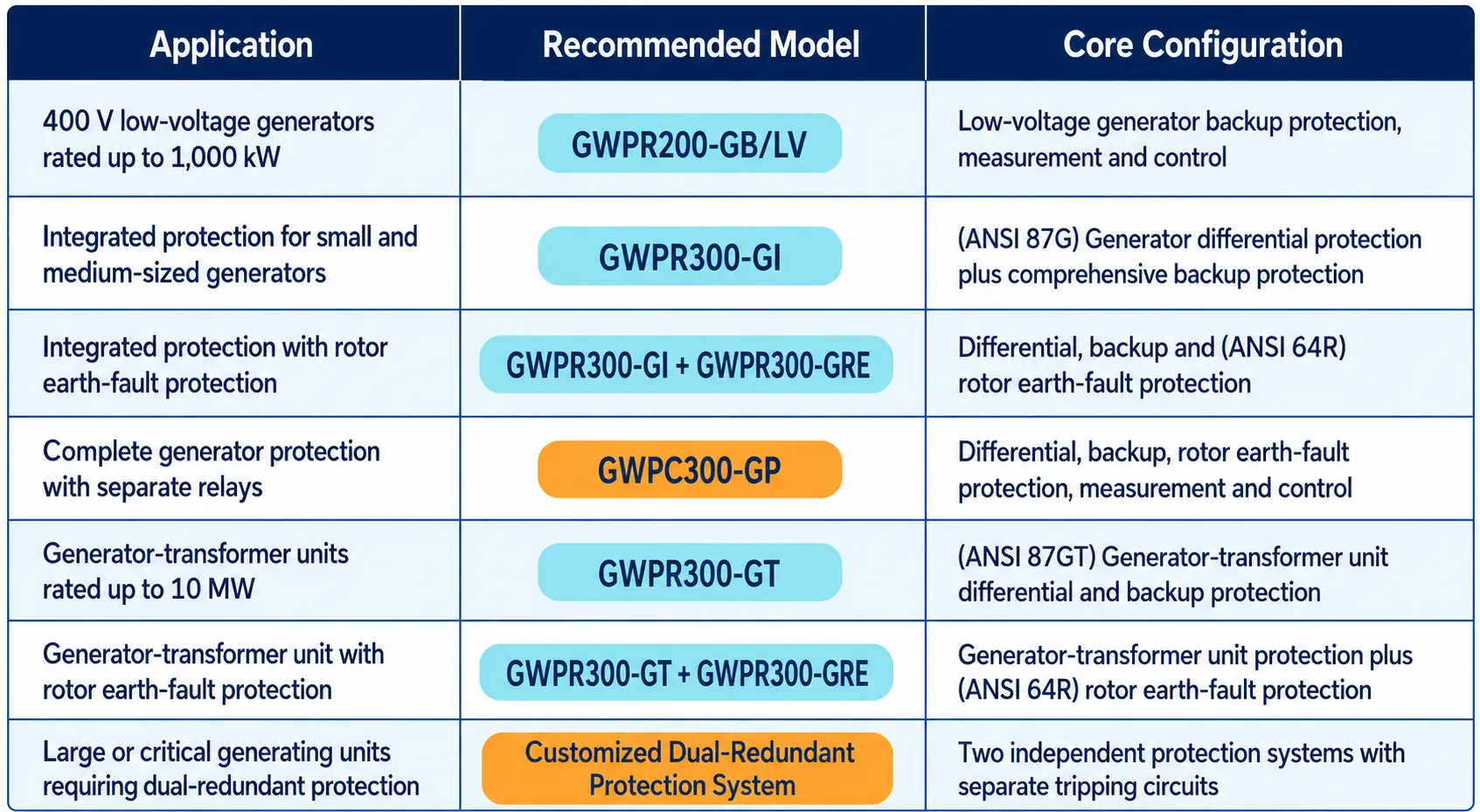

GoWatron Generator Protection Selection Guide

3. Application-Based Selection

Application 1: 400 V Low-Voltage Generator Protection

This solution is intended for 400 V generators rated up to 1,000 kW, particularly in standby power, emergency power and small distributed-generation applications.

Recommended Model

GWPR200‑GB/LV Low-Voltage Generator Backup Protection Relay

Main Protection Functions

(ANSI 50/51) Multi-Stage Phase Overcurrent Protection
(ANSI 51V) Overcurrent Protection with Composite-Voltage Blocking
(ANSI 51N) Earth-Fault Overcurrent Protection
(ANSI 46) Negative-Sequence Overcurrent Protection
(ANSI 59) Overvoltage Protection
(ANSI 27) Undervoltage Protection
(ANSI 81O) Overfrequency Protection
(ANSI 81U) Underfrequency Protection
(ANSI 32) Reverse-Power Protection
(ANSI 60) CT/VT Circuit Supervision
(ANSI 74) Trip and Control Circuit Supervision
System Loss-of-Voltage Supervision
External Alarm and Trip Inputs

Measurement and Control Functions

Three-phase voltage and current measurement
Residual current measurement
Active and reactive power measurement
Power-factor and frequency measurement
Four-quadrant energy metering
Binary Input Acquisition
Programmable relay outputs
Circuit-breaker control
Sequence-of-Events recording
Fault disturbance recording
Remote communication

The GWPR200‑GB/LV can be installed directly in a low-voltage generator switchboard or mounted in a centralized protection and control panel.

Selection Recommendation

For 400 V low-voltage generators rated up to 1,000 kW, select the GWPR200‑GB/LV.
Product reference: GWPR200‑GB/LV Low-Voltage Generator Protection Relay

Application 2: Integrated Protection for Small and Medium-Sized Generators

This solution is intended for generating units requiring differential protection and comprehensive backup protection in a single device.

It reduces the number of relays, panel space, secondary wiring and installation costs while providing complete generator protection, measurement, control and communication functions.

Recommended Model

GWPR300‑GI Generator Integrated Protection Relay

The GWPR300‑GI combines the principal functions of:

Main Protection Functions

(ANSI 87G) Generator Differential Instantaneous Protection
(ANSI 87G) Percentage-Biased Generator Differential Protection
(ANSI 50) Instantaneous Phase Overcurrent Protection
(ANSI 51) Definite-Time Phase Overcurrent Protection
(ANSI 51) Inverse-Time Phase Overcurrent Protection
(ANSI 51V) Overcurrent Protection with Composite-Voltage Blocking
(ANSI 50G/51G) Earth-Fault Overcurrent Protection
(ANSI 49) Generator Thermal Overload Protection
(ANSI 46) Negative-Sequence Overcurrent Protection
(ANSI 46) Negative-Sequence Inverse-Time Overcurrent Protection
(ANSI 40) Loss-of-Field Protection
(ANSI 32) Reverse-Power Protection
(ANSI 81O) Overfrequency Protection
(ANSI 81U) Underfrequency Protection
(ANSI 59) Overvoltage Protection
(ANSI 27) Undervoltage Protection
(ANSI 59N) Residual Overvoltage Protection
(ANSI 64G) 100% Generator Stator Earth-Fault Protection
(ANSI 60) VT Circuit Supervision and Loss-of-Potential Detection
(ANSI 86) Lockout and Master Trip Logic
CT Circuit Failure Supervision
Differential Current Alarm
Trip Circuit Supervision
External Inputs for Mechanical and Non-Electrical Protections

Measurement and Control Functions

Three-phase voltage and current measurement
Residual voltage and current measurement
Active and reactive power measurement
Power-factor measurement
Four-quadrant energy metering
Binary Input Acquisition
Programmable relay outputs
Circuit-breaker control
Sequence-of-Events recording
Fault disturbance recording
Remote alarm and event transmission

Typical Application Range

Hydro-generators rated up to 3 MW
Turbo-generators rated up to 10 MW
Medium-voltage diesel and gas generators
Distributed and captive generating units
Generator protection retrofit projects
Applications requiring a compact integrated protection solution

Optional Rotor Earth-Fault Protection

Where continuous monitoring of the generator excitation circuit insulation is required, add:

GWPR300‑GRE Generator Rotor Earth-Fault Protection Relay

Main functions:

(ANSI 64R‑1) Rotor Single Earth-Fault Protection
(ANSI 64R‑2) Rotor Double Earth-Fault Protection
Online Rotor Insulation Resistance Monitoring
Rotor Earth-Fault Location Indication
Fault Disturbance Recording
Event and Alarm Recording

Recommended Configuration
GWPR300‑GI + GWPR300‑GRE: integrated generator differential, backup, stator earth-fault and rotor earth-fault protection.

Product reference: GWPR300‑GI Generator Integrated Protection Relay

Application 3: Complete Generator Protection with Separate Relays

This solution is intended for applications requiring generator differential protection, backup protection, rotor earth-fault protection, and measurement and control functions to be implemented by separate devices.
Compared with a single-device integrated solution, this configuration provides greater functional independence, reliability and maintainability.

Recommended Model

GWPC300‑GP Generator Protection Panel

Standard Configuration

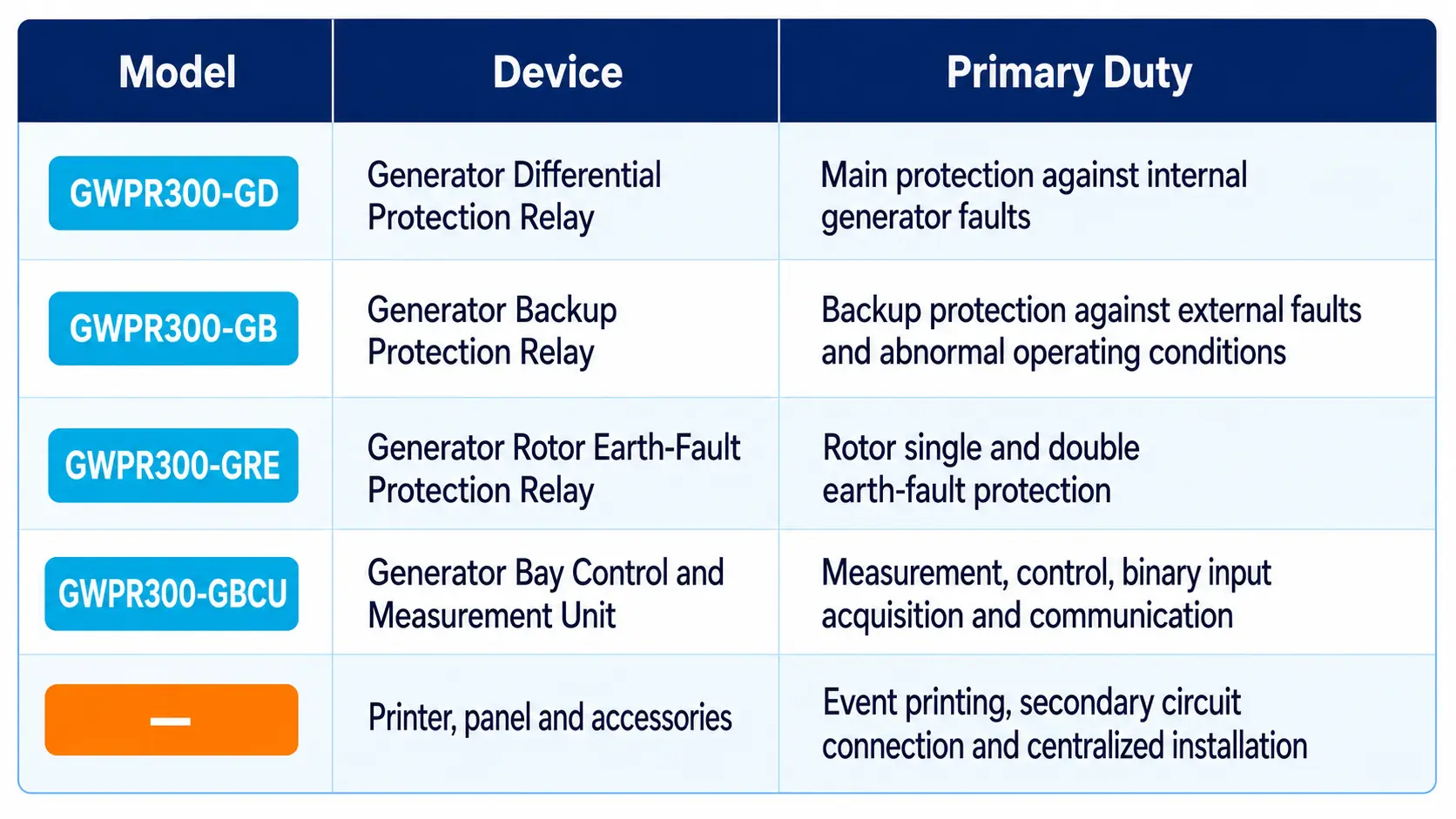

GoWatron Generator Protection Device Configuration

GWPR300‑GD Main Functions

(ANSI 87G) Generator Differential Instantaneous Protection
(ANSI 87G) Percentage-Biased Generator Differential Protection
Split-Phase (Transverse Differential) Protection, optional
CT Circuit Failure Supervision
Differential Current Alarm
External Inputs for Mechanical and Non-Electrical Protections
Fault Disturbance Recording
Event Recording
Communication Functions

Split-phase protection is applicable only where the generator stator winding has accessible parallel branches and suitable CT arrangements.

GWPR300‑GB Main Functions

(ANSI 50) Instantaneous Phase Overcurrent Protection
(ANSI 51) Definite-Time Phase Overcurrent Protection
(ANSI 51) Inverse-Time Phase Overcurrent Protection
(ANSI 51V) Overcurrent Protection with Composite-Voltage Blocking
(ANSI 50N/51N) Earth-Fault Overcurrent Protection
(ANSI 64G) 100% Generator Stator Earth-Fault Protection
(ANSI 46) Negative-Sequence Overcurrent Protection
(ANSI 46) Negative-Sequence Inverse-Time Overcurrent Protection
(ANSI 49) Generator Thermal Overload Protection
(ANSI 40) Loss-of-Field Protection
(ANSI 32) Reverse-Power Protection
(ANSI 67) Directional Overcurrent Protection
(ANSI 59) Overvoltage Protection
(ANSI 59N) Residual Overvoltage Protection
(ANSI 27) Undervoltage Protection
(ANSI 81O) Overfrequency Protection
(ANSI 81U) Underfrequency Protection
(ANSI 60FL) VT Fuse-Failure and Loss-of-Potential Supervision
(ANSI 86) Lockout and Master Trip Logic
CT Circuit Failure Supervision
Trip Circuit Supervision
Circuit-Breaker Opening and Closing Control
External Alarm and Trip Inputs

GWPR300‑GRE Main Functions

(ANSI 64R‑1) Rotor Single Earth-Fault Protection
(ANSI 64R‑2) Rotor Double Earth-Fault Protection
Online Rotor Insulation Resistance Monitoring
Rotor Earth-Fault Location Indication
Excitation Voltage Measurement
Fault Disturbance Recording
Event and Alarm Recording
Remote Communication

GWPR300‑GBCU Main Functions

Generator voltage and current measurement
Active and reactive power measurement
Power-factor and frequency measurement
Energy metering
Circuit-breaker opening and closing control
Binary Input Acquisition
Circuit-breaker and disconnector status monitoring
Sequence-of-Events recording
Remote measurement, indication and control
Communication with the power plant SCADA system

Typical Application Range

Hydro-generators rated up to 10 MW
Turbo-generators rated up to 100 MW
Other critical generating units, subject to actual project parameters
Projects requiring centralized protection-panel installation
Unattended or minimally attended power plants
Applications requiring independent main and backup protection devices

Communication Functions

IEC 60870‑5‑103
IEC 60870‑5‑104
Modbus RTU
IEC 61850, optional
IRIG‑B time synchronization
SNTP network time synchronization
Message-based time synchronization

Selection Recommendation

Where generator differential, backup, rotor earth-fault, measurement and control functions must be implemented by separate devices, select the GWPC300‑GP Generator Protection Panel.

Product reference: GWPC300‑GP Generator Protection Panel

Application 4: Generator-Transformer Unit Protection

This solution is intended for unit-connected arrangements in which the generator is directly connected to a step-up transformer.

It is particularly suitable where:

No generator circuit breaker is installed between the generator and transformer
The generator and step-up transformer form one protection zone
Integrated generator-transformer unit differential protection is required
A compact protection, measurement and control solution is preferred

Recommended Model

GWPR300‑GT Generator-Transformer Unit Protection Relay

The GWPR300‑GT can include the generator, connecting conductors and step-up transformer within a common differential protection zone.

It integrates:

Generator-transformer unit differential protection
Generator-transformer unit backup protection
Transformer mechanical protection inputs
Electrical measurement
Circuit-breaker control
Fault disturbance recording
Sequence-of-Events recording
Remote communication

Main Protection Functions

(ANSI 87GT) Generator-Transformer Unit Differential Instantaneous Protection
(ANSI 87GT) Percentage-Biased Generator-Transformer Unit Differential Protection
(ANSI 50) Instantaneous Phase Overcurrent Protection
(ANSI 51) Definite-Time Phase Overcurrent Protection
(ANSI 51) Inverse-Time Phase Overcurrent Protection
(ANSI 51V) Overcurrent Protection with Composite-Voltage Blocking
(ANSI 51N) Neutral Earth-Fault Overcurrent Protection
(ANSI 46) Negative-Sequence Overcurrent Protection
(ANSI 59) Overvoltage Protection
(ANSI 59N) Residual Overvoltage Protection
(ANSI 27) Undervoltage Protection
(ANSI 40) Loss-of-Field Protection
(ANSI 49) Thermal Overload Protection
(ANSI 49) Winding and Oil Temperature Protection
(ANSI 63) Buchholz Alarm Input
(ANSI 63) Buchholz Trip Input
(ANSI 60) VT Circuit Supervision and Loss-of-Potential Detection
(ANSI 74) Trip and Control Circuit Supervision
CT Circuit Failure Supervision
Differential Current Alarm
Transformer Door-Open Alarm
External Inputs for Mechanical and Non-Electrical Protections

Measurement and Control Functions

Three-phase voltage and current measurement
Residual voltage and current measurement
Active and reactive power measurement
Power-factor measurement
Four-quadrant energy metering
Binary Input Acquisition
Circuit-breaker and disconnector status monitoring
Programmable trip and alarm outputs
Circuit-breaker control
Fault disturbance recording
Sequence-of-Events recording

Typical Application Range

Generator-transformer units rated up to 10 MW
Generator-transformer connections at system voltages up to 132 kV
50 Hz and 60 Hz power systems
Centralized protection-panel installation
Decentralized field installation

Optional Rotor Earth-Fault Protection

Where generator rotor insulation monitoring is required, add:

GWPR300‑GRE Generator Rotor Earth-Fault Protection Relay

Main functions:

(ANSI 64R‑1) Rotor Single Earth-Fault Protection
(ANSI 64R‑2) Rotor Double Earth-Fault Protection
Online Rotor Insulation Resistance Monitoring
Rotor Earth-Fault Location Indication

Recommended Configuration

GWPR300‑GT + GWPR300‑GRE: generator-transformer unit differential, backup, mechanical and rotor earth-fault protection.

Product reference: GWPR300‑GT Generator-Transformer Unit Protection Relay

Application 5: Large or Dual-Redundant Generator Protection Systems

This solution is intended for generating units exceeding the typical application ranges of the standard products, or for projects whose technical specifications require dual-redundant protection.

Typical Configuration

Two independent generator differential protection systems
Two independent generator backup protection systems
Independent rotor earth-fault protection
Separate CT secondary cores
Separate VT secondary circuits, where required
Separate DC auxiliary power supplies
Separate protection trip outputs
Separate circuit-breaker trip coils, where available
Separate communication interfaces
Independent lockout and master trip circuits
Independent protection function switches and test terminals

Dual-redundant protection means more than installing an additional relay. Appropriate independence should be maintained from CT/VT inputs and auxiliary power supplies through the protection logic to the final circuit-breaker tripping circuits.

4. Final Selection Summary

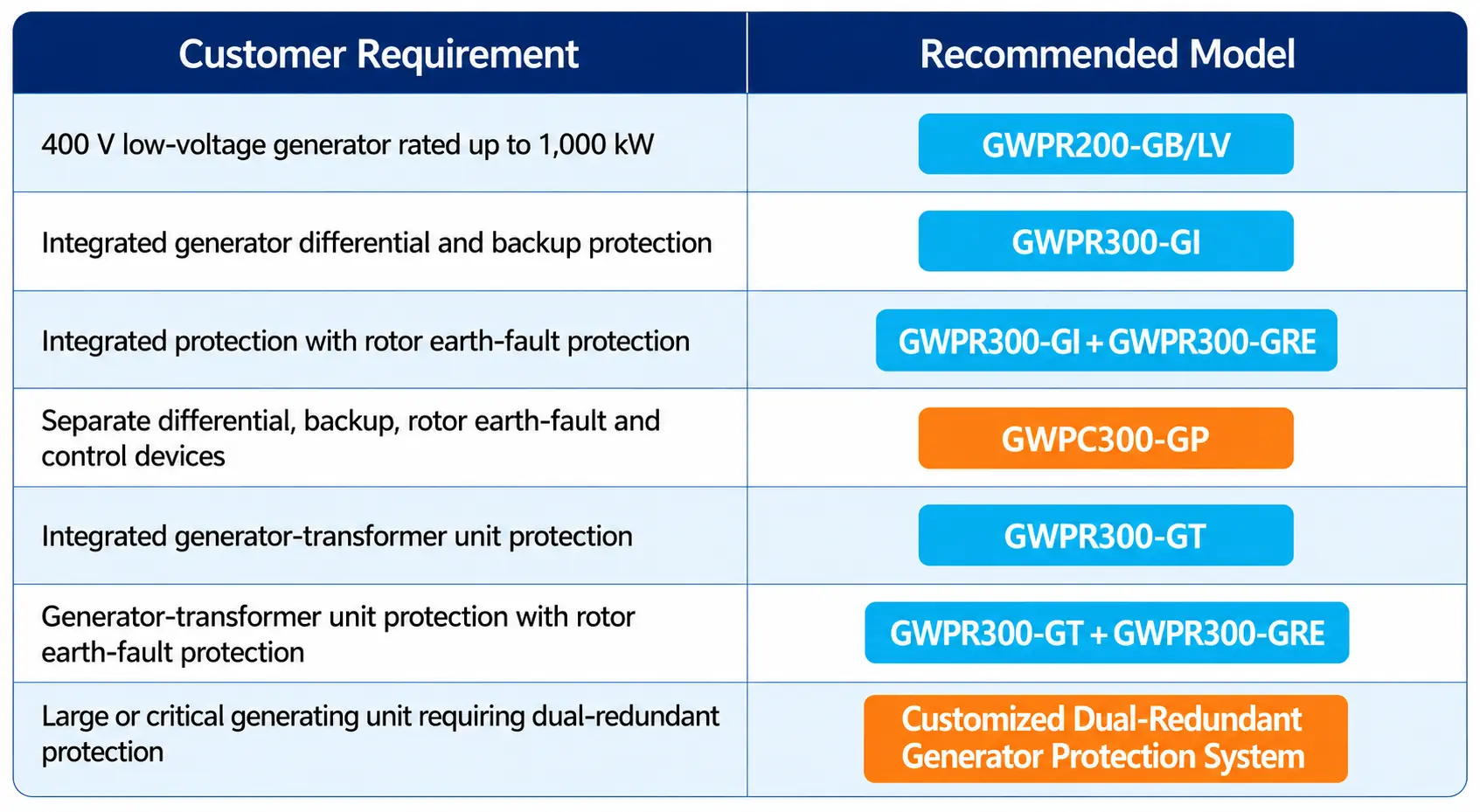

gowatron generator protection recommended-models

Previous: DNP3.0 (IEEE 1815) vs IEC 60870‑5‑104 Key Differences Next:Generator Negative-Sequence Overcurrent Protection (ANSI 46): Principles, Functions and Setting Calculations
