Function of PV Anti-Islanding Protection Relay

What is the Islanding Phenomenon?

• When a photovoltaic (PV) system operates in grid-connected mode, the generated DC power is converted to AC by the inverter. This output supplies on-site loads, while any surplus energy is exported to the public utility grid.
• Should the external utility grid experience an unexpected outage (e.g., circuit breaker tripping or feeder fault), the supply line is assumed to be fully de-energized. However, if the PV inverter continues to operate, electrical power will be confined within a localized loop comprising the inverter and connected loads, effectively decoupling this section from the main network. This abnormal operating condition is defined as islanding.

Hazards Caused by Islanding

• Personnel Safety Risk: Field utility workers assume the line is dead for maintenance, yet it remains energized by the PV system, posing a severe risk of electric shock and fatal injuries.
• Power Quality & Equipment Damage: Without the voltage and frequency reference from the main grid, the island’s voltage and frequency will drift outside permissible limits, potentially damaging the inverter, end-user appliances, and distribution assets.
• Re-synchronization Failure: Upon restoration of the main grid, a severe phase-angle mismatch can generate destructive synchronization inrush currents. This may cause instantaneous and irreversible damage to the PV inverter’s power semiconductors.

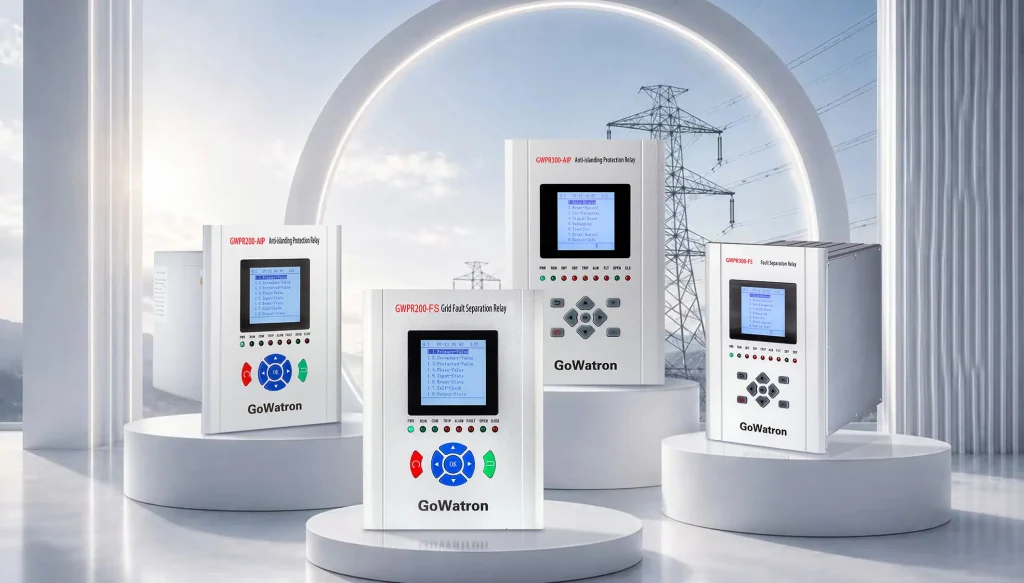

Functions of the Anti-Islanding Protection Relay

• The relay provides continuous monitoring and control at the Point of Common Coupling (PCC).
• Continuous Grid Status Monitoring: It constantly tracks grid voltage, frequency, and Rate of Change of Frequency (ROCOF) to verify the stability and presence of the utility supply.
• Islanding Condition Identification: Upon detection of a Loss of Mains (LOM) condition, or when voltage/frequency deviations exceed preset thresholds (as per grid code requirements), the relay instantly confirms unintended islanding.
• Rapid Disconnection (Tripping): It immediately issues a command to open the coupling switch (or trip the dedicated circuit breaker) between the PV inverter and the public grid, thereby achieving physical isolation of the PV system.
• Prevention of Premature Reconnection: After a grid-fault disconnection, automatic reconnection is strictly prohibited. The relay continuously supervises grid conditions; reconnection is only permitted after the grid maintains stable parameters for a predefined “reconnection waiting time” (e.g., 60–300 seconds, depending on local grid codes).

Supplementary Key Notes

• Regulatory Mandate: Anti-islanding protection is a compulsory requirement stipulated by international grid-connection standards (e.g., IEEE 1547, IEC 62116, VDE-AR-N 4105). Without it, utility companies will not grant interconnection approval for any PV installation.
• Redundancy Strategy: Although most modern PV inverters integrate built-in anti-islanding algorithms, large-scale or utility-scale PV plants are typically equipped with an independent external relay to provide dual redundancy and ensure fail-safe operation.
• Scope of Protection: This device specifically mitigates risks arising from unintentional islanding due to grid loss. It does not cover protection against DC-side faults (e.g., string-to-ground or line-to-line faults), DC arc faults, lightning surges, or AC-side ground faults, which require separate protective devices.

Concluding Summary

• The anti-islanding protection relay serves as a critical safety interface for grid-connected PV systems. By continuously monitoring utility grid status and rapidly isolating the PV system upon detection of an unexpected outage, it effectively prevents distribution lines from remaining live (ensuring personnel safety), avoids equipment damage from voltage/frequency excursions, and eliminates the risk of destructive inrush currents during grid restoration.
