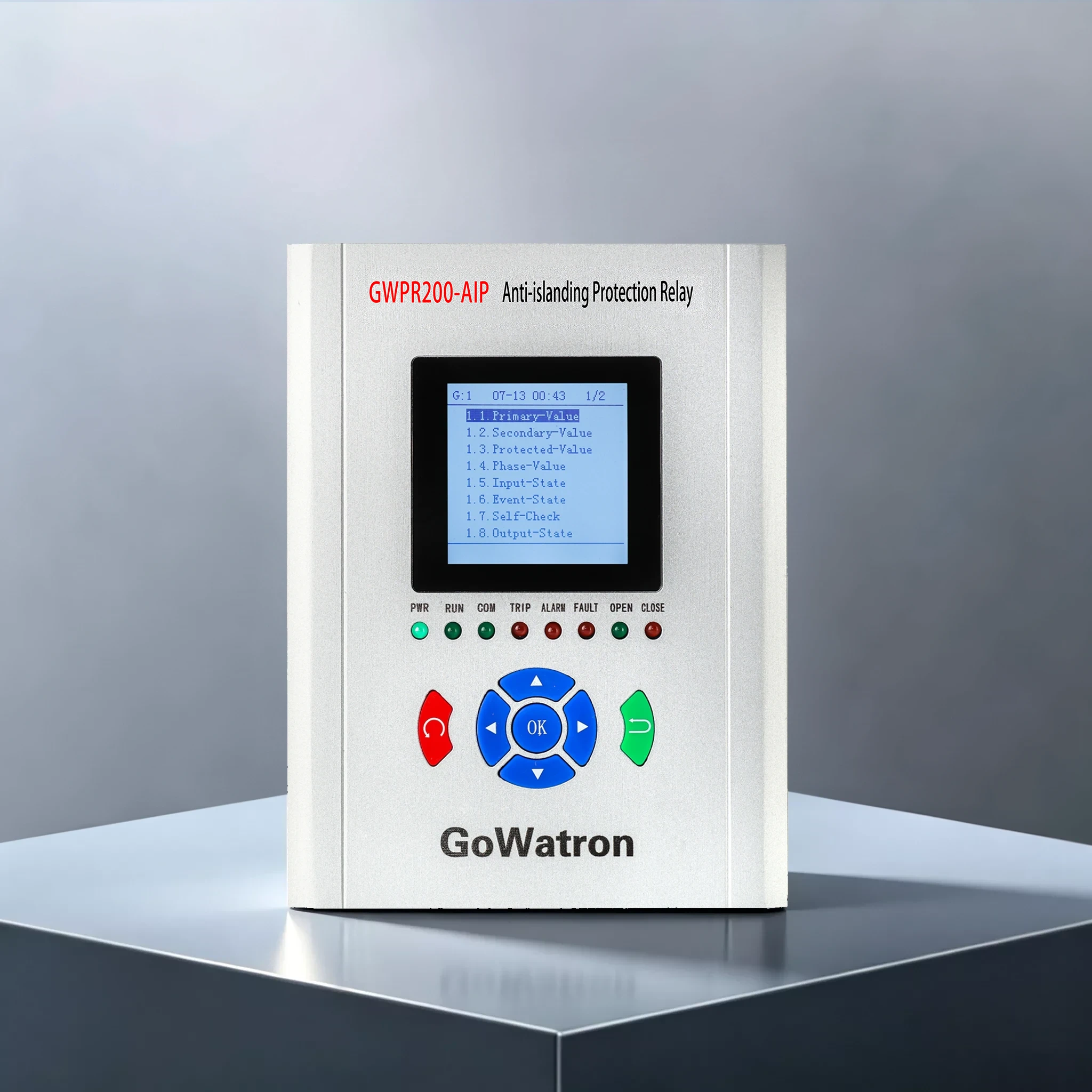

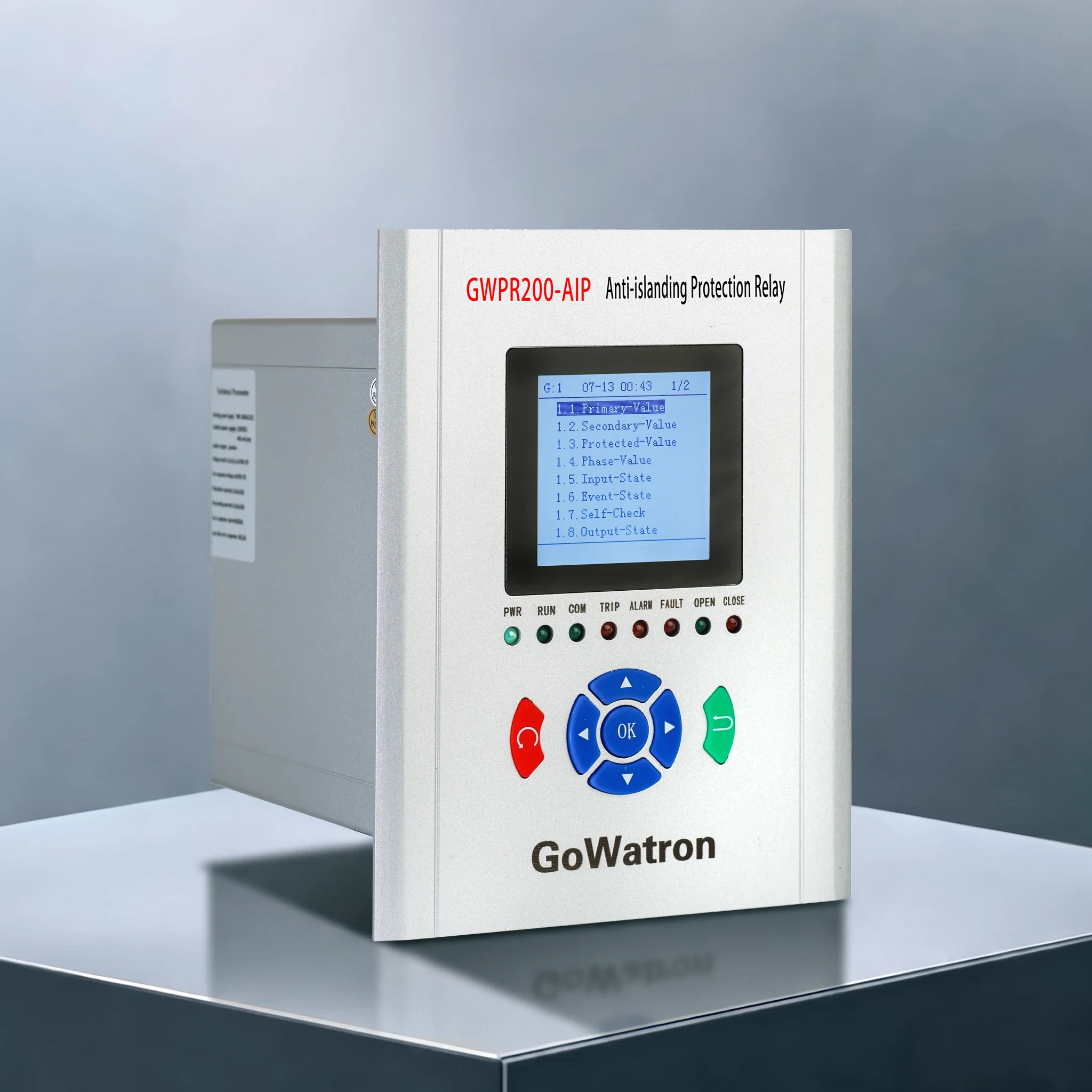

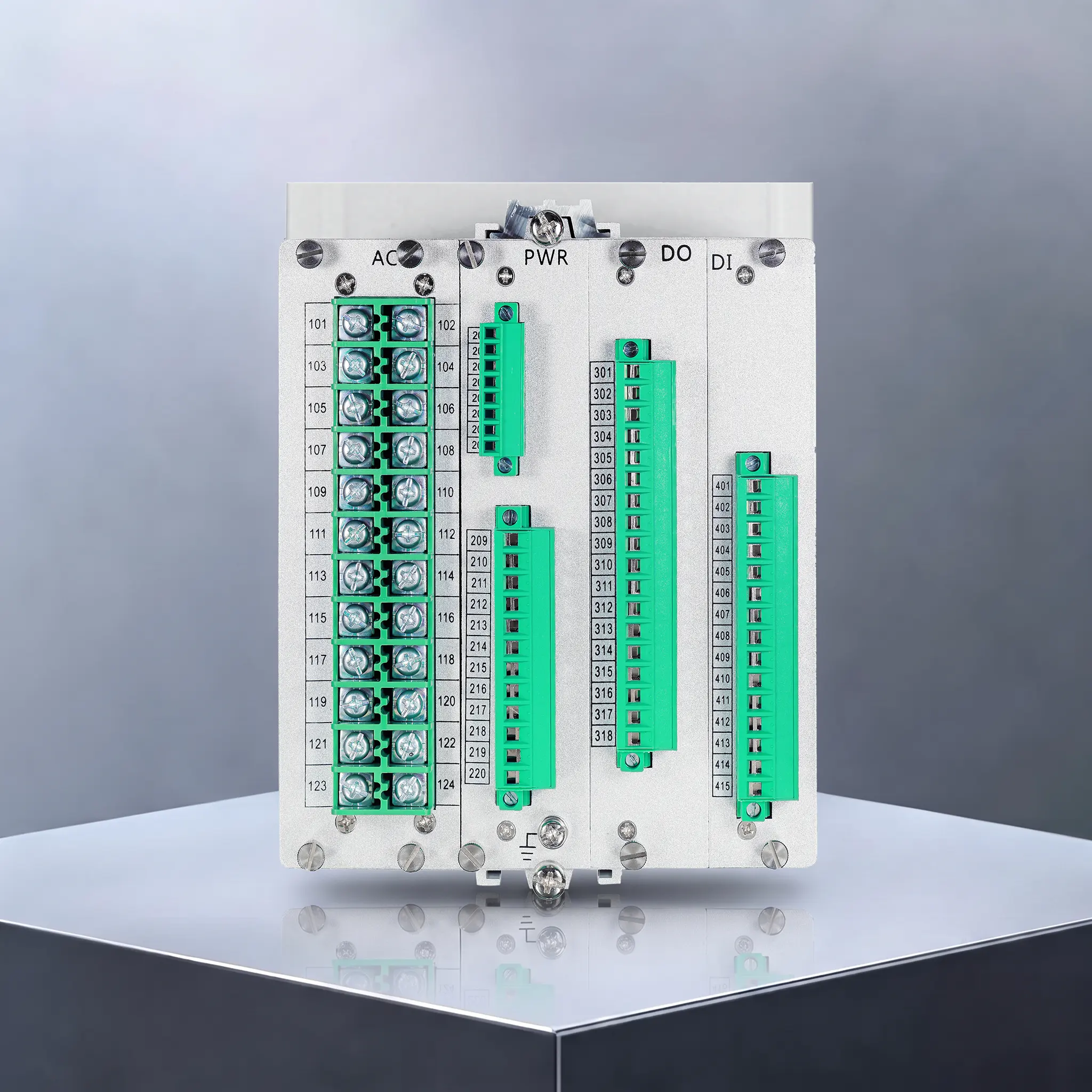

GWPR200-AIP Anti-Islanding Protection Relay
Product Desc
GWPR200-AIP Anti-Islanding Protection Relay is designed for distributed photovoltaic power projects at 11kV and 22kV voltage levels. It is a digital protection relay specially developed to prevent islanding conditions.This relay can be used with the GWPR200-FL Grid Fault Disconnection Relay and GWPR200-D Power Quality Online Monitor to form a grid-connected protection panel, or flush-mounted on the panel of the PV grid-connected cabinet.
Communication Interfaces:
- 2 Ethernet ports (supporting IEC 60870-5-103; optional)
- 1 RS485 communication port (supporting Modbus-RTU protocol)
- Time synchronization via communication message, SNTP, and IRIG-B
Accuracy
≤ 0.2%
Quick Response
≤ 100ms
Reliable Protection
Comprehensive Protection
Quality Assurance
ISO 9001 Certified
Technical Support
24/7 Expert Support
Fast Delivery
Global Shipping
Warranty
2-Year Warranty
Product Overview
- The GWPR200-AIP Anti-Islanding Protection Relay is widely adopted in photovoltaic power plants, particularly for distributed PV projects connected to the grid at 11 kV and 22 kV voltage levels.When unintended islanding occurs, the device trips the grid-connection switch to ensure operational safety.It can be installed as part of a panel assembly or locally mounted inside switchgear cubicles.
- By monitoring electrical parameters in real time, the relay detects islanding conditions within milliseconds and rapidly disconnects the power supply to maintain secure system operation.
- Its core protection functions cover multi-dimensional criteria including voltage, frequency, and power direction. Equipped with intelligent communication and automatic grid-connection capabilities, the relay is suitable for various new energy power stations and industrial and commercial grid-connected PV applications, delivering “last-mile” protection for the power grid.
Product Functions
- (ANSI 50) Instantaneous Overcurrent Protection (Trip)
- (ANSI 50TD) Time-delayed Instantaneous Overcurrent Protection (Trip)
- (ANSI 51) Overcurrent Protection (Trip)
- (ANSI 51N) Zero Sequence Overcurrent Protection (Alarm / Trip Selectable)
- (ANSI 59) Overvoltage Protection Stage I/II/III (Trip)
- (ANSI 27) Undervoltage Protection Stage I/II/III (Alarm / Trip Selectable)
- (ANSI 81O) Overfrequency Protection Stage I/II/III (Trip)
- (ANSI 81U) Underfrequency Protection Stage I/II/III/IV/V (Trip)
- (ANSI 81R) Rate of Change of Frequency (ROCOF) Protection (Trip)
- (ANSI 32R) Reverse Power Protection (Trip)
- (ANSI 25) Voltage Check Auto-Closing (Close)
- (ANSI 79) Power Restoration Auto-Reclose (Close)
- Harmonic Detection Protection (Trip)
- (ANSI 60) VT Circuit Failure (Alarm)
- (ANSI 86) External Intertrip 1/2 (Trip)
applicable scenarios
- The GWPR200-AIP Anti-islanding Protection Relay is suitable for grid-connected anti-islanding protection for various distributed generation equipment, including gas-fired and biogas generating sets, photovoltaic power generation systems, energy storage systems, small hydropower units, and distributed wind power generation systems.
- The GWPR200-AIP Anti-islanding Protection Relay is applicable in medium and low voltage grid interconnection cabinets, generator control panels, and outgoing cabinets of distributed power stations. The device monitors grid voltage, frequency, current, and power in real time, implements fault protection and anti-islanding tripping to comply with local grid code requirements.
- The GWPR200-AIP Anti-islanding Protection Relay is applicable to industrial captive power plants, commercial distributed power generation systems, and microgrid operation scenarios. It provides comprehensive grid anomaly protection and automatic reclosing logic for distributed generators upon main grid disconnection or power quality degradation.
