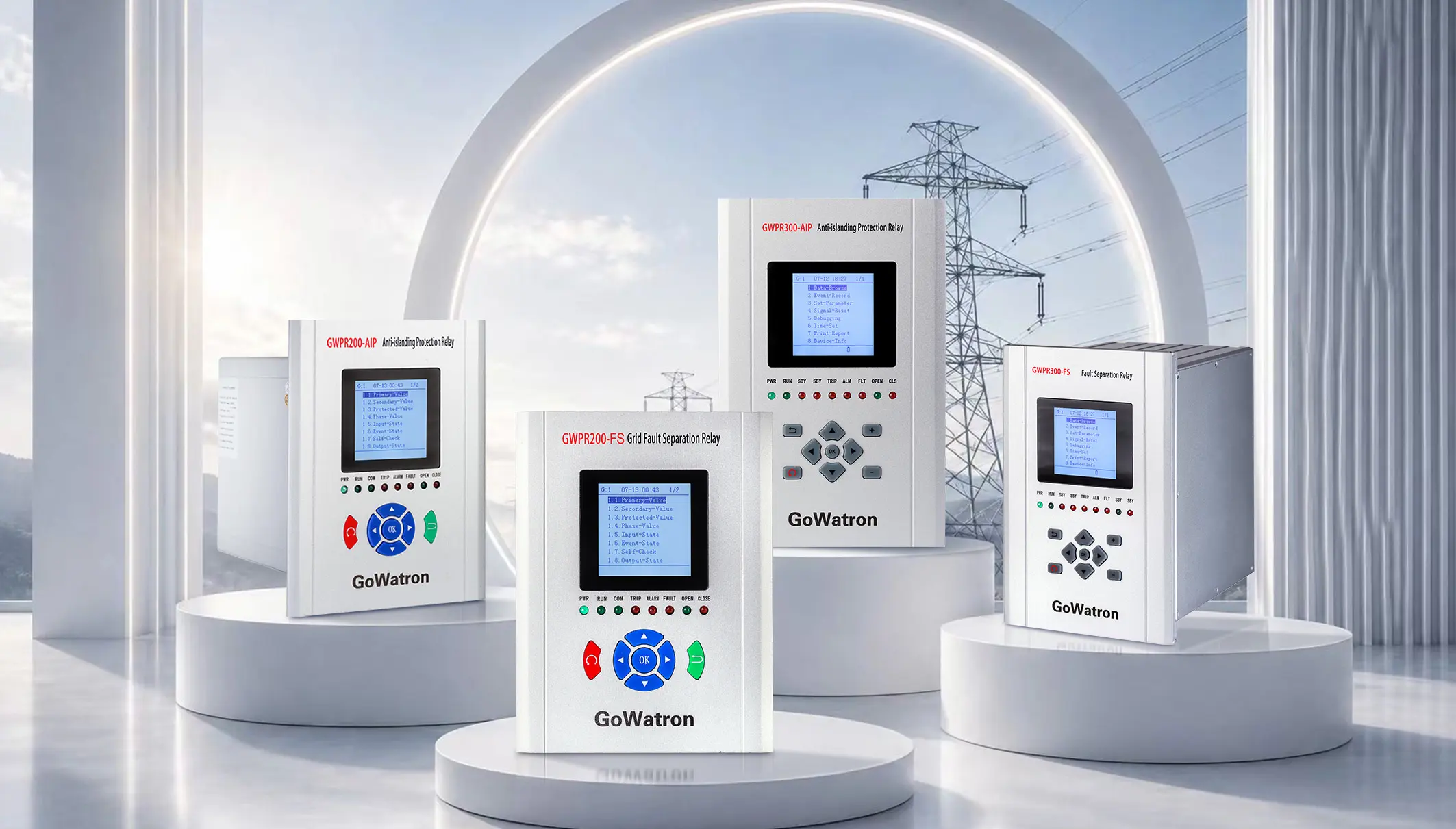

Digital Anti-islanding Protection Relay

ONE-STOP CUSTOM SOLUTIONS

For Solar PV, Wind, and DER Systems.

Features active/passive islanding detection, voltage/frequency ride-through, and reverse power protection.

Supports IEC 61850, IEC 104 , IEC 103, Modbus, and DNP3.

Fully compliant with IEEE 1547 and IEC 62116. Applicable for systems up to 230kV.

Available with custom hardware, firmware, and white-label OEM/ODM services.

GoWatron is engaged in the R&D, manufacturing and sales of protection relays for voltage levels up to 230 kV.

Power Protection Relays

Products Related To Anti-islanding Protection Relays

GWPR100-AIP Low-Voltage Anti-Islanding Protection Relay

The GWPR100-AIP low-voltage anti-islanding protection relay is mainly applied to medium- and small-sized 400 V distributed photovoltaic grid-connected cabinets. It integrates protection, measurement & control, communication and event recording functions. The device can be mounted in switch cabinets in a distributed manner or centrally panel-mounted, and is suitable for anti-islanding and comprehensive protection of low-voltage PV grid-connected systems.
Equipped with one RS485 port adopting the Modbus-RTU protocol. Communication address, baud rate and parity bit are configurable. It can connect to a supervisory host system to upload measured analogs, binary status, events and protection settings.

LEARN MORE

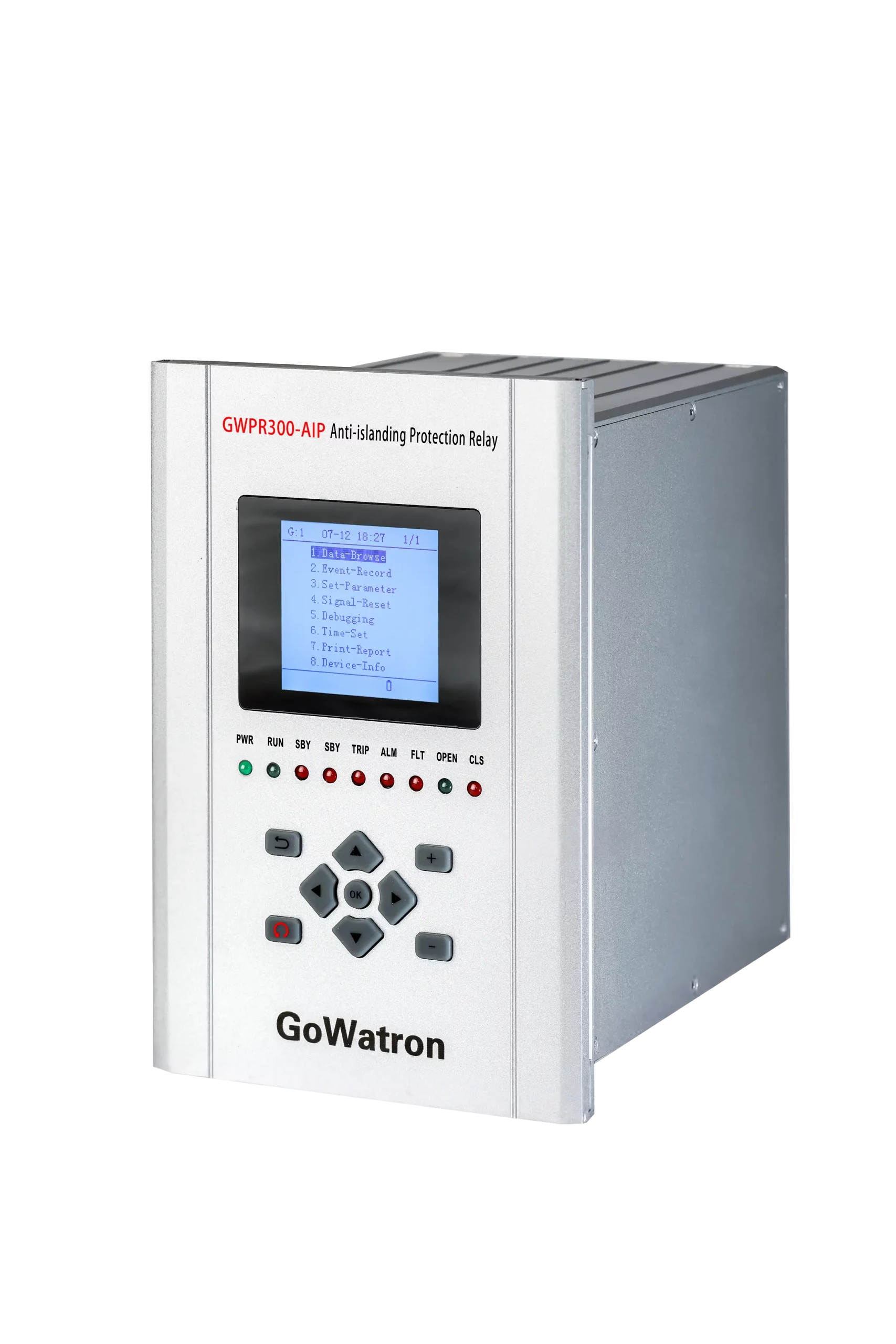

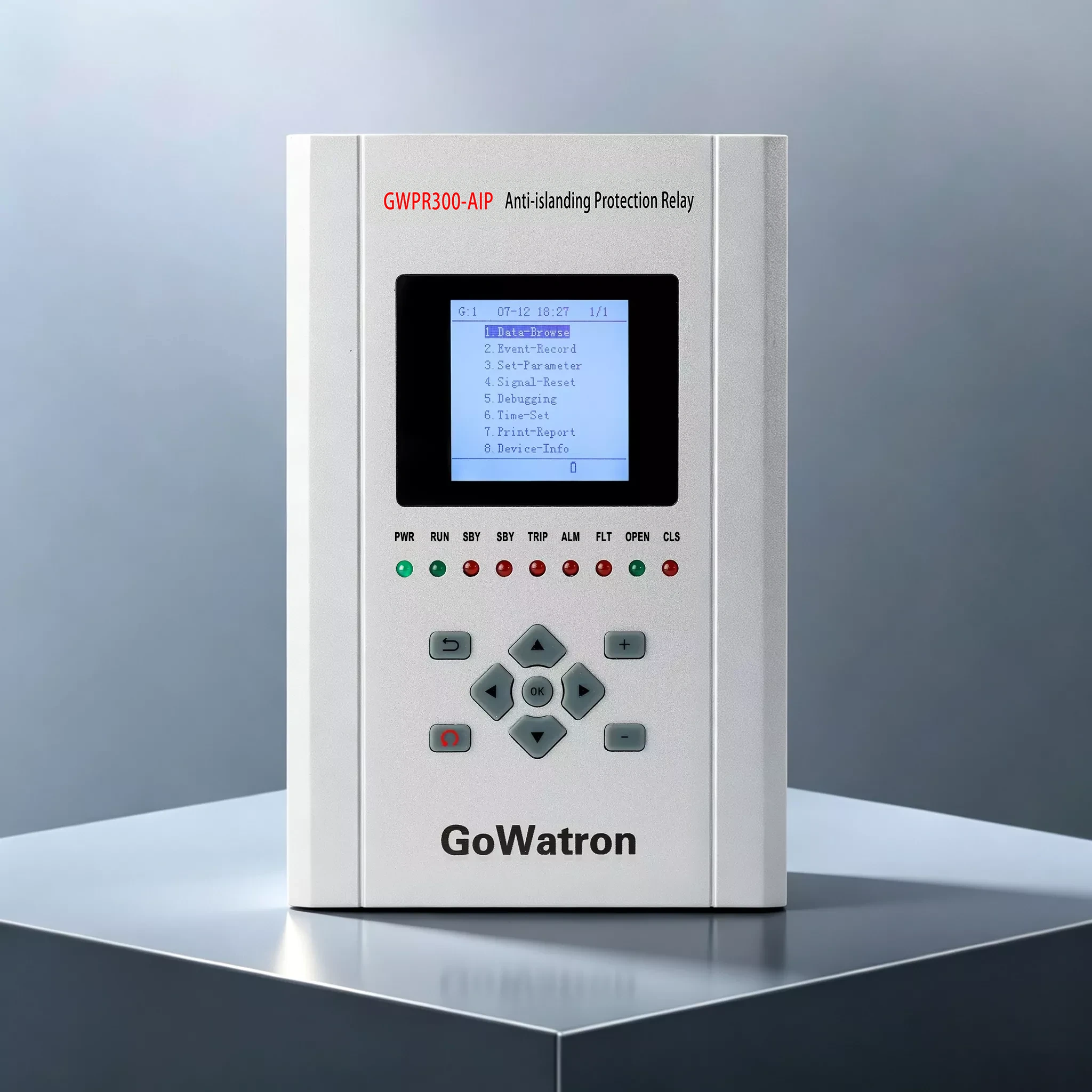

GWPR300‑AIP Anti‑Islanding Protection Relay

The GWPR300‑AIP anti‑islanding protection relay is mainly applied to 132kV, 66kV and 33kV voltage levels in grid‑connected distributed generation and centralized photovoltaic power generation systems. It realizes anti‑islanding protection, electrical protection, measurement and control to ensure the safe operation of grid‑connected distributed power sources.

Measurement & Control: Electrical quantity measurement, four‑quadrant energy metering; 21‑channel digital inputs, 13‑channel relay outputs, 1‑channel device power‑loss signal output
Communication: Dual Ethernet ports, RS‑485 interface; supports IEC104, Modbus‑RTU, optional IEC61850
Time Synchronization: Supports IRIG‑B (B‑code), SNTP and network message time synchronization
Recording: Event and fault oscillography storage, supports local report printing

LEARN MORE

GWPR200-AIP Anti-Islanding Protection Relay

GWPR200-AIP Anti-Islanding Protection Relay is designed for distributed photovoltaic power projects at 11kV and 22kV voltage levels. It is a digital protection relay specially developed to prevent islanding conditions.This relay can be used with the GWPR200-FL Grid Fault Disconnection Relay and GWPR200-D Power Quality Online Monitor to form a grid-connected protection panel, or flush-mounted on the panel of the PV grid-connected cabinet.

Communication Interfaces:

2 Ethernet ports (supporting IEC 60870-5-103; optional)
1 RS485 communication port (supporting Modbus-RTU protocol)
Time synchronization via communication message, SNTP, and IRIG-B

LEARN MORE
