RENEWABLE ENERGY AUTOMATION SYSTEMS – ONE-STOP INTEGRATION

Seamless Integration from Inverter-Level Controllers to Plant-Level SCADA

Multi-Scenario Coverage: Solar PV, Wind Farms, BESS (Battery Energy Storage Systems) & Hybrid Renewable Plants.

Complete Portfolio: Inverters, PLC/RTUs, Weather Sensors, Protection Relays, SCADA Software & Centralized Control Systems.

Turnkey Services: On-Site Commissioning, System Testing & Performance Optimization.

Lifecycle O&M Support: Remote Monitoring, Centralized O&M Management, Spare Parts & System Upgrades.

Automation & Control Systems

Products Related To Renewable Energy Automation Systems

GWPR320-PQA Power Quality Analyser

Desc

GWPR320-PQA Power Quality Analyser is an online power quality monitoring device based on a 32-bit ARM Cortex-M4 core. It is designed for high-accuracy power quality measurement in photovoltaic grid-connected systems, renewable energy plants, distributed generation systems, substations, and distribution networks. The device integrates high-precision data acquisition, real-time analysis, event recording, alarming, and waveform capture, supporting voltage deviation, frequency deviation, voltage and current unbalance, harmonics, interharmonics, voltage fluctuation and flicker, voltage events, and DC component monitoring.

LEARN MORE

GWPC300-PVG PV Grid Connection Protection Panel

The GWPC300-PVG PV Grid Connection Protection Panel is an integrated secondary protection and control panel designed specifically for 11 kV / 33 kV /132 kV distributed PV grid connection systems. It integrates four key functions — anti-islanding protection, fault separation (interconnection protection), voltage & frequency emergency control, and power quality monitoring — into a single panel.
Installed at or near the PV grid connection point, the GWPC300-PVG provides an integrated protection, measurement & control, monitoring, and communication solution between the PV plant and the utility grid. It supports safe grid connection, reliable operation, remote supervision, and plant automation.
For distributed PV projects requiring grid connection protection + power quality monitoring + communication and data transmission in one panel, the GWPC300-PVG provides a complete integrated secondary-system solution.

LEARN MORE

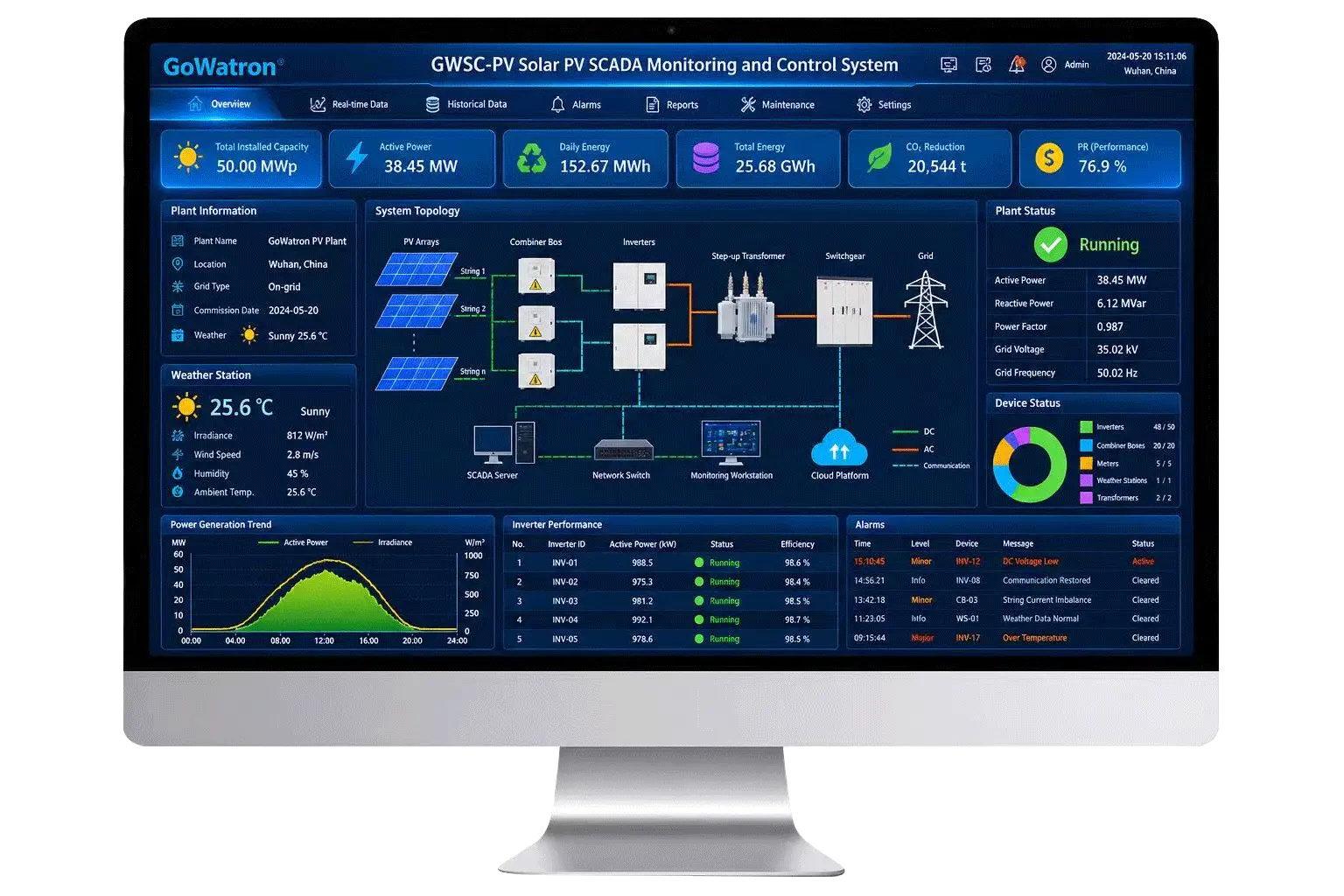

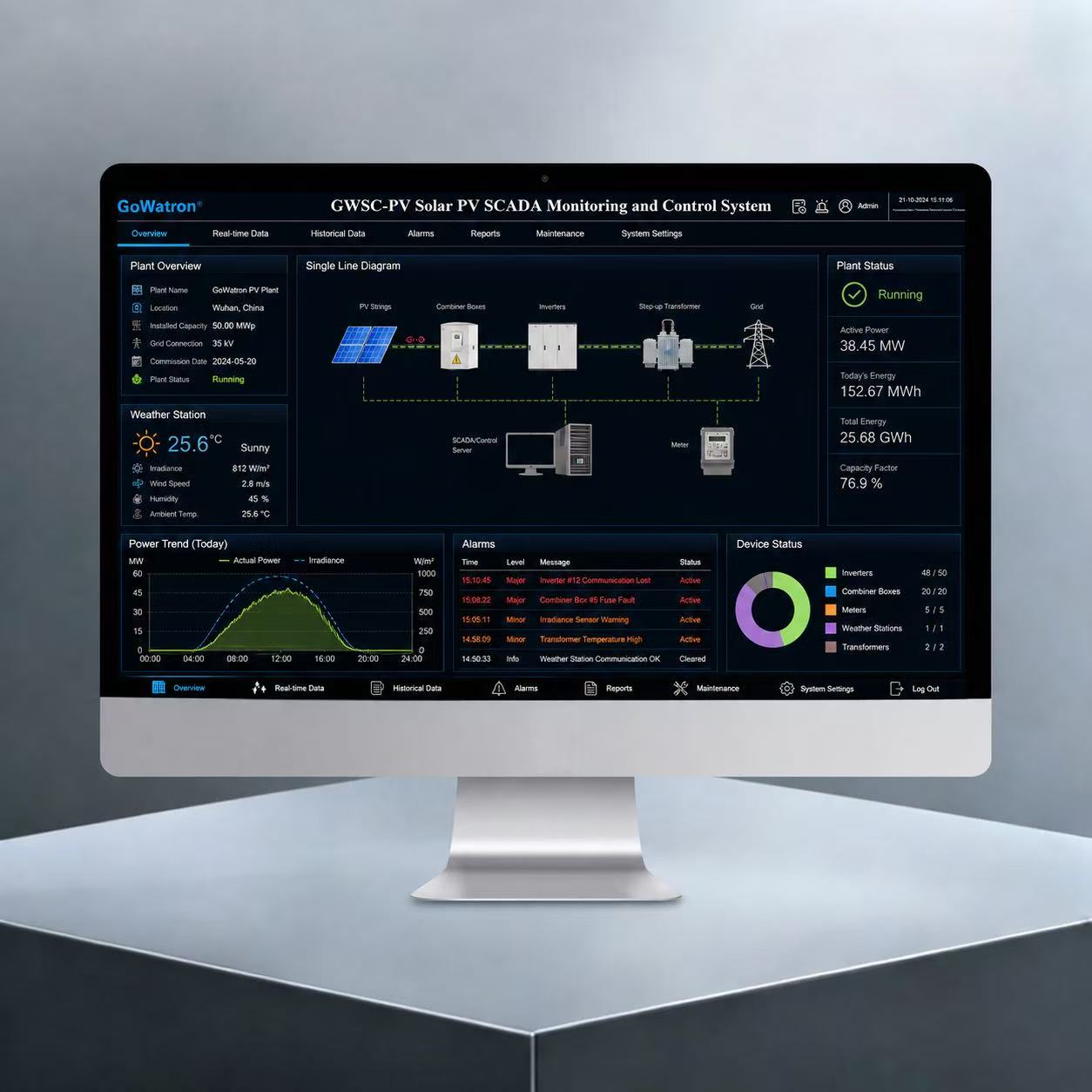

GWSC-PV Solar PV SCADA Monitoring and Control System

Desc

The GWSC-PV Solar PV SCADA System is an integrated monitoring and protection platform designed for all voltage levels of solar PV grid connection, ranging from 0.4kV low-voltage distributed systems to 11kV/33kV medium-voltage collection networks and 132kV high-voltage booster stations.
Built on a hierarchical-distributed architecture, bay-level units comprise dedicated grid-interconnection protection relays and distributed bay-mounted protection devices. The system covers full-station electrical data acquisition, equipment status supervision, grid-connection safety protection, closed-loop AGC/AVC power regulation, millisecond-response primary frequency control (PFC), solar power forecasting, optional wide-band oscillation monitoring, digital fault recording & alarm, energy statistics, and utility dispatch communication. It fully complies with utility grid-access requirements for renewable energy: observable, measurable, adjustable, and controllable.
The system supports mainstream power communication protocols including IEC 60870-5-104, Modbus-TCP, and IEC 61850. It seamlessly interfaces with inverters, compact substations, combiner boxes, weather stations, energy meters, and utility dispatch master stations. It is applicable to both small-to-medium distributed and large-scale centralized PV power plants, supporting local on-site operation and remote centralized O&M. The system can also be expanded to incorporate energy storage systems (ESS) for coordinated PV-storage regulation.

LEARN MORE

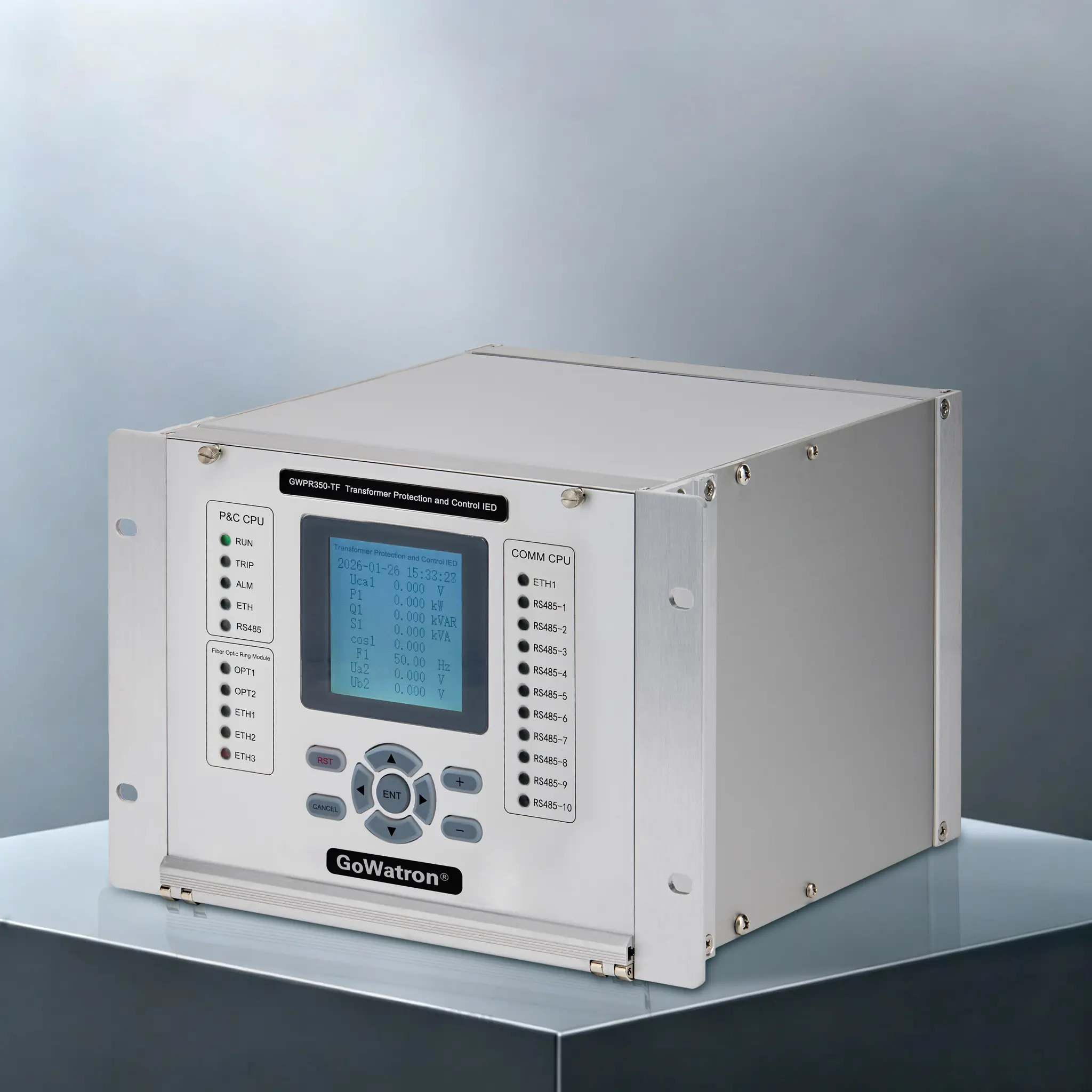

GWPR350-TF Transformer Protection and Control IED

The GWPR350-TF is a multifunctional IED that combines transformer protection, measurement & control, and protocol gateway capabilities. It provides dedicated trip protection for the box-type substation, aggregates data from combiner boxes, inverters, and video surveillance systems, and forwards it to the SCADA system. With support for both on-site control and remote supervision, it ensures maximum security and stability for renewable energy.

Features 2 self-healing optical-fiber interfaces and 3 self-healing electrical ports for optical-fiber ring-network formation.
2 CPU-integrated Ethernet communication interfaces.
2 CPU-integrated RS485 communication ports.
Supports communication protocols including Modbus, IEC 60870-5-103, IEC 60870-5-104, with IEC 61850 as an optional protocol.
Protocol conversion: Fitted as standard with 10 RS485 interfaces and 2 Ethernet communication interfaces to function as a communication manager.

LEARN MORE

GWPC300-T transformer protection panel front view

GWPC300-TP transformer protection panel

The GWPC300-TP transformer protection panel is primarily used for the protection and control of step-up and step-down transformers in 132 kV, 66 kV and 33 kV substations and power plants. It is a complete secondary cabinet integrating a full suite of main transformer relay protection, measurement and control, signal processing, and control circuits, serving as the core secondary apparatus of substations and power plants.

LEARN MORE
