INTEGRATED DISTRIBUTION BOXES

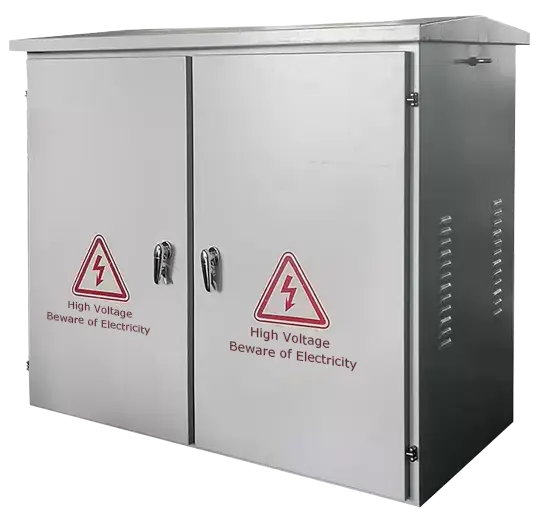

GWJP Pole‑Mounted LV Integrated Distribution Box (Cabinet) is an integrated complete‑set power distribution unit developed for 0.4 kV outdoor distribution transformers, supporting pole‑mounted suspension or floor‑standing installation. The unit integrates power distribution, energy metering, circuit protection, reactive power compensation, monitoring and control functions. Featuring anti‑corrosion, weather‑resistant enclosure, high protection grade and compact structure for easy operation and maintenance, it is widely deployed in urban and rural distribution network areas. It realizes centralized management and control of low‑voltage power from distribution transformers, reduces line losses and improves power supply quality and safety. Both standard and intelligent configurations are available.

• XL‑21 low‑voltage power distribution cabinet is an indoor enclosed low‑voltage complete switchgear complying with GB/T 7251.12‑2013 and IEC 61439‑2. It is applicable to power distribution systems with 50 Hz frequency, rated operational voltage of 380 V/660 V and rated insulation voltage of 690 V, with rated current ranging from 100 A to 630 A. Integrating power distribution, equipment control, short‑circuit protection and overload protection, the product is widely deployed in various industrial and civil power distribution projects.
• The cabinet is fabricated from 2.0 mm high‑quality cold‑rolled steel sheet through CNC bending and integral welding, featuring high structural rigidity and strong impact resistance. The surface is treated by pickling‑phosphating and electrostatic powder coating for anti‑corrosion, delivering excellent corrosion and wear resistance to prevent cabinet deformation and corrosion during long‑term operation. With standardized layout, convenient maintenance and high safety performance, it supports custom‑made solutions to suit complex working conditions, serving as a standardized distribution unit that offers high structural strength and low lifecycle cost.
